HDMI 2.0 Audio Extractor (Splitter) 音訊提取器


HDMI 2.0 音頻分離器


HDMI 2.0 Audio Extractor (Splitter)
HDMI 2.0 音頻分離器

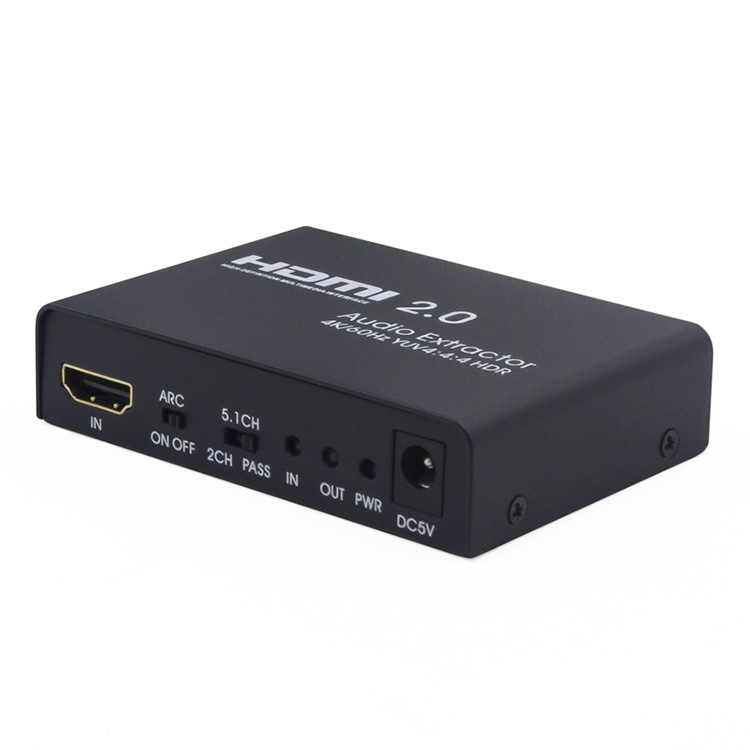

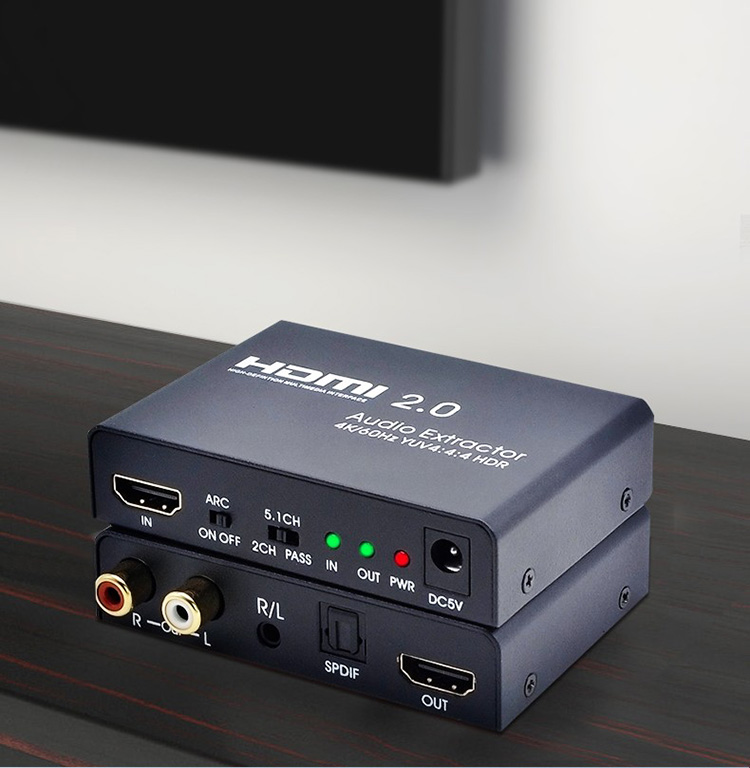

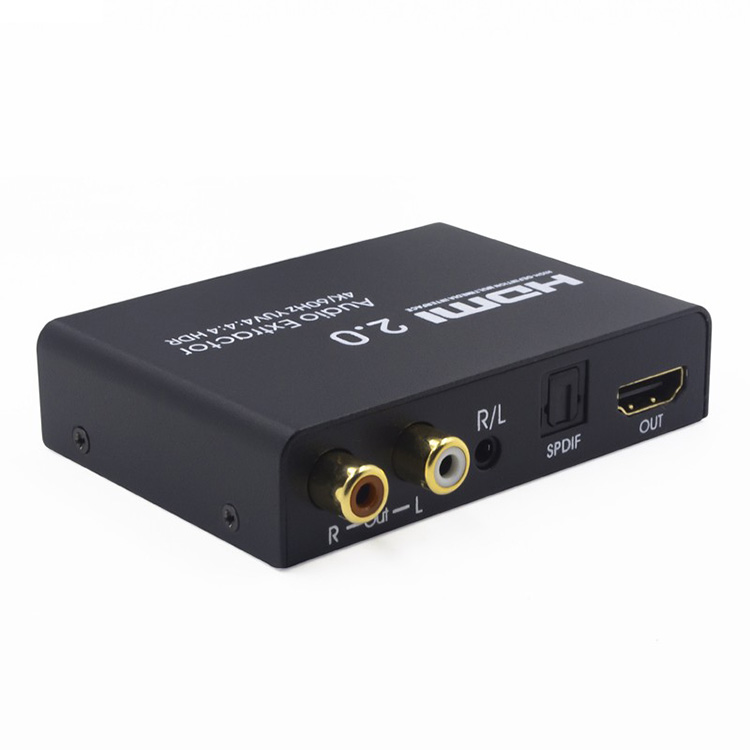

This HDMI audio splitter lets you connect the source device to a display device, and simultaneously separate the digital audio from the HDMI signal to the SPDIF Fiber output, or convert it via the internal audio DAC. 2-Channel Stereo Analog Audio to power system. It supports Dolby Digital AC-3, DTS, LPCM and other digital audio format output, with DVD player, Blu-ray player, network player, set-top box, PS2, PS3, PS4 , Xbox360, PC and many other entertainment devices HDMI output docking.

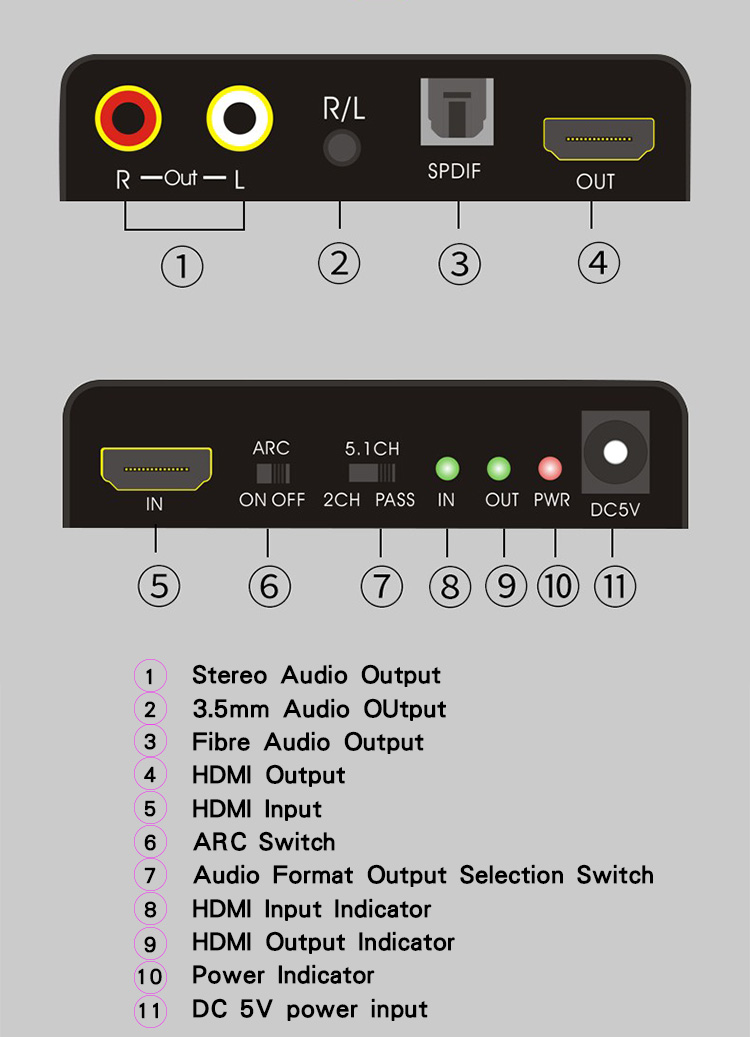

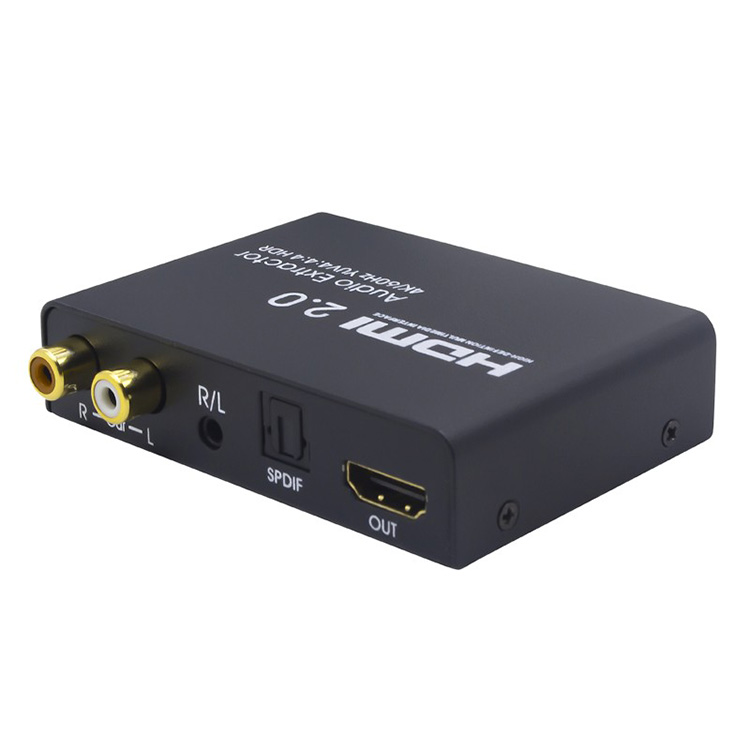

1. It can synchronously separate the audio signal without occupying the HDMI high-definition output interface of the signal source device, and supports SPDIF optical digital audio output interface and L/R stereo analog audio output interface.

2. HDMI resolution up to 4K/60fs, & support 3D, HDR, YUV4: 4:4

3. SPDIF optical output supports AC3, DTS, LPCM and other digital audio formats, support 5.1 CH

4. Audio output supports 3 Audio selection modes (2CH/5.1CH/PASS)

5. Support ARC

Specification :
[Resolution] 4K 60fs (Max)
[HDMI Audio Format] Support DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dobly-AC3, DSD
[SPDIF Audio Format] Support Dobly-AC3, DTS, LPCM
[HDMI Bandwidth] Max 600MHz
[HDMI Baud Rate] Max 18Gbps
[Input Output TMDS Signal] 0.5-1.5Vp-p (TTL)
[Input Output DDC Signal] 5Vp-p (TTL)
[DAC sampling frequency] 32-192KHz
[DAC bit rate] 16-24Bit
[RCA analog output] 1KHz@0dB, 1V RMS
[S/N Ratio] ≥90dB
[Distortion degree] ≤0.1%
[Frequency response] 20Hz-20KHz
[HDMI Input Cable Distance] ≤3m AWG26 HDMI Standard Cable
[HDMI Output Cable Distance] ≤3m AWG26 HDMI Standard Cable
[Max Working Current] 400mA
[Power Adapter Format] 100-240V 50/60Hz 5V1A
[Operating Temperature Range] -10 – +55 ºC
[Storage Temperature Range] -20 – +60 ºC
[Operating Humidity Range] 10-90% RH (No condensation)
[Storage Humidity Range] 5-95% RH (No condensation)
[Size] 85 x 61 x 20.5mm
[Weight] 122grams

* Specification is subjected to change without prior notice

HDMI 2.0 音頻分離器
HDMI 2.0 Audio Extractor (Splitter)

這款 HDMI 音頻分離器可連接到一台顯示設備上, 同時還可以同步分離出 HDMI 信號中的數字音頻到 SPDIF 光纖輸出, 或者經內部音頻DAC轉換後輸出2聲道立體聲模擬音頻到的功效系統. 支援杜比數碼AC-3、DTS、LPCM等多種數字音頻格式輸出. 可與DVD播放機、藍光機、網絡播放器、機頂盒、PS2、PS3、PS4 , Xbox360、PC等眾多娛樂設備的HDMI高清輸出端對接使用.

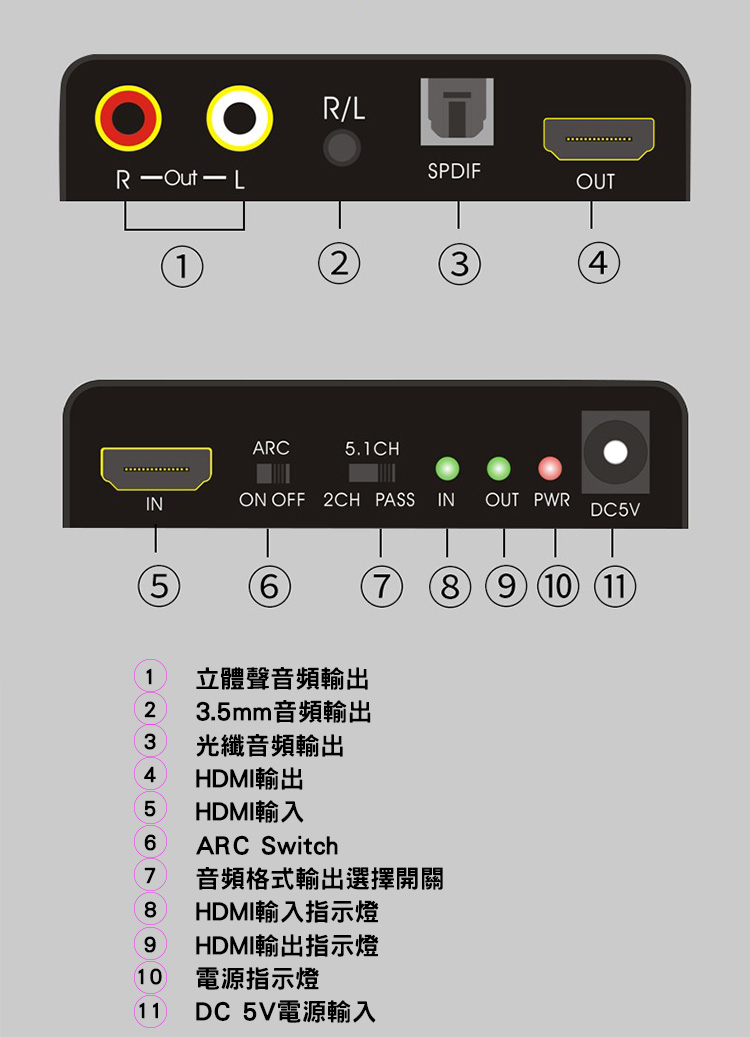

1. 不佔用信號源設備的HDMI高清輸出接口,即可同步分離出音頻信號,支持1路SPDIF光纖數字音頻輸出接口和1路L/R立體聲模擬音頻輸出接口

2.HDMI分辨率最高支持4K/60fs,支持3D, HDR, YUV4:4:4

3.SPDIF光纖輸出支持AC3、DTS、LPCM等數字音頻格式,支援 5.1CH



規格 :
[解像度] 4K 60fs (最高)
[HDMI 音頻格式] 支援 DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dobly-AC3, DSD
[SPDIF 音頻格式] 支援 Dobly-AC3, DTS, LPCM
[HDMI 頻寬] 最高 600MHz
[HDMI 波特率] 最高 18Gbps
[TMDS 信號] 0.5-1.5Vp-p (TTL)
[DDC 信號] 5Vp-p (TTL)
[DAC 採樣頻率] 32-192KHz
[DAC 比特率] 16-24Bit
[RCA 模擬輸出] 1KHz@0dB, 1V RMS
[S/N 比率] ≥90dB
[失真度] ≤0.1%
[頻率響應] 20Hz-20KHz
[HDMI 輸入電纜距離] ≤3m AWG26 HDMI 標準電纜
[HDMI 輸出電纜距離] ≤3m AWG26 HDMI 標準電纜
[最高工作電流] 400mA
[輸入] 100-240V 50/60Hz 5V1A
[工作溫度範圍] -10 – +55 ºC
[存儲溫度範圍] -20 – +60 ºC
[操作濕度範圍] 10-90% RH (沒有凝結)
[存儲濕度範圍] 5-95% RH (沒有凝結)
[尺寸] 85 x 61 x 20.5mm
[重量] 122grams

* 以上資料僅供參考用, 以產品實際為準備!
